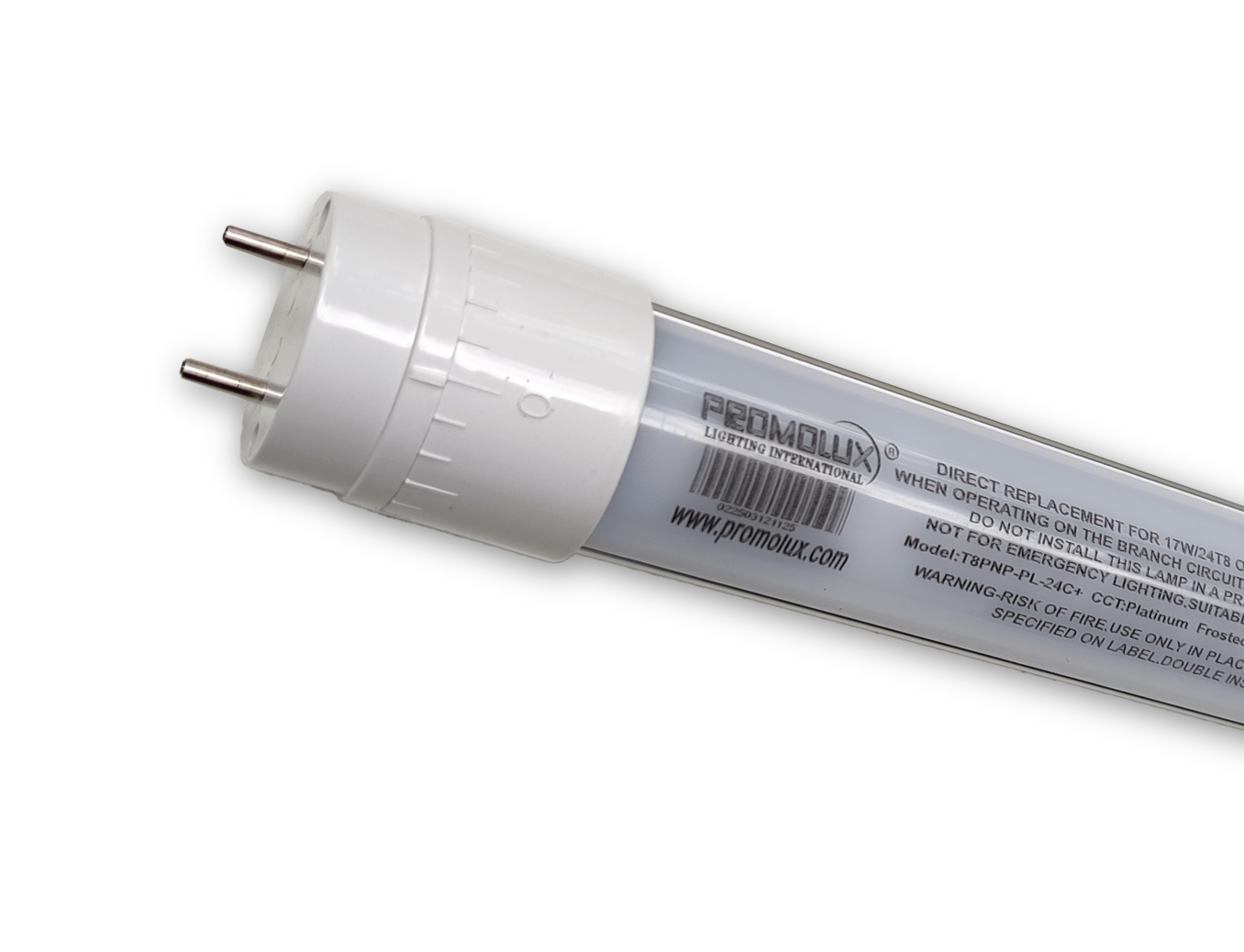

T8 Plug-n-Play

Ideal for:

Service & Multi-Deck: Meat, Seafood, Dairy, Delia & Prepared Foods, Floral, Produce, Bakery, Salad Bars, Ice Cream/Gelato

Buy Now

Volume Pricing

Spec Sheets: English, Spanish

Overview

The Promolux Plug-n-Play T8 LED is designed specifically for merchandising and protecting fresh food while on display. It works as either a drop-in (type A) LED or line voltage (type B) LED.

As a drop-in LED, the Promolux Plug-n-Play T8 works with electronic T8 ballasts and easily installs with no wiring changes or added labor costs.

As a line voltage LED, the Promolux Plug-n-Play T8 uses direct AC line voltage (single end power input).

Product Data

• Type A & B

• G13 Bi-Pin Rotatable & Locking End-Caps

• Plug-n-Play (no wiring changes)

• Replaces T8 Fluorescent Tubes

• Works with T8 Electronic Ballasts (Type A LED)

• Single End Power Input (Polar) when Direct Wired (Type B LED)

• 134° Beam Angle

• UL Conforming

• IP54

• High Brightness / 80 CRI

• High R9/R12 Values

• Up to 60% Energy savings

Ordering Guide

Size	ModelNumber	Watts	Type	Length (mm)	Length (in)	Replaces Fluorescents	Lumens	Lumens per Watt	Color
2 ft	T8PNP-PL-24C+	8	Canopy	600	24	F17 T8	880	110	Platinum
3 ft	T8PNP-PL-36C+	14	Canopy	900	36	F25 T8	1582	113	Platinum
4 ft	T8PNP-PL-48C+	18	Canopy	1200	48	F32 T8	2070	115	Platinum
5 ft	T8PNP-PL-60C+	22	Canopy	1500	60	F40 T8	2508	114	Platinum

3 ft	T8PNP-PL-36S+	7	Shelf	900	36	F25 T8	791	113	Platinum
4 ft	T8PNP-PL-48S+	9	Shelf	1200	48	F32 T8	1035	115	Platinum
5 ft	T8PNP-PL-60S+	11	Shelf	1500	60	F40 T8	1243	113	Platinum

Enhance Fresh Food Appeal with Promolux Platinum Color Series LEDs

Lighting for Fresh Food Merchandising

Promolux Platinum Color Series LEDs are meticulously crafted for the specific purpose of enhancing fresh food displays. With a carefully balanced color spectrum enriched by deep reds and deep blues, these LEDs address the deficiencies often found in overhead ambient lighting commonly used in retail environments. By incorporating deep red and deep blue hues into the balanced color spectrum, Promolux compensates for the lack of these colors in general and ambient lighting, creating an eye-catching effect that makes the colors of fresh food products truly stand out.

From produce sections to deli counters, utilize the Platinum Color Series LEDs in any area where lighting plays a pivotal role in attracting customers and emphasizing the vibrant appeal of fresh food.

Product Catalog

Ideal For:

• Service Meat Cases
• Service Seafood Cases
• Produce Cases/Displays
• Service Deli Cases
• Prepared Foods Cases

• Bakery Cases
• Ice Cream & Gelato Cases
• Floral Cases/Displays

LED Lighting by Promolux

Supermarket Refrigeration Display Case

Slimline Bar LED

Slimline Edge LED

Slimline Wedge LED

T8 Plug-N-Play (single end)

Dual End Line Voltage T8

Tri-Proof LED

Door Tube LED

Flexible Tape LED

Fresh Track Light

Par 30
