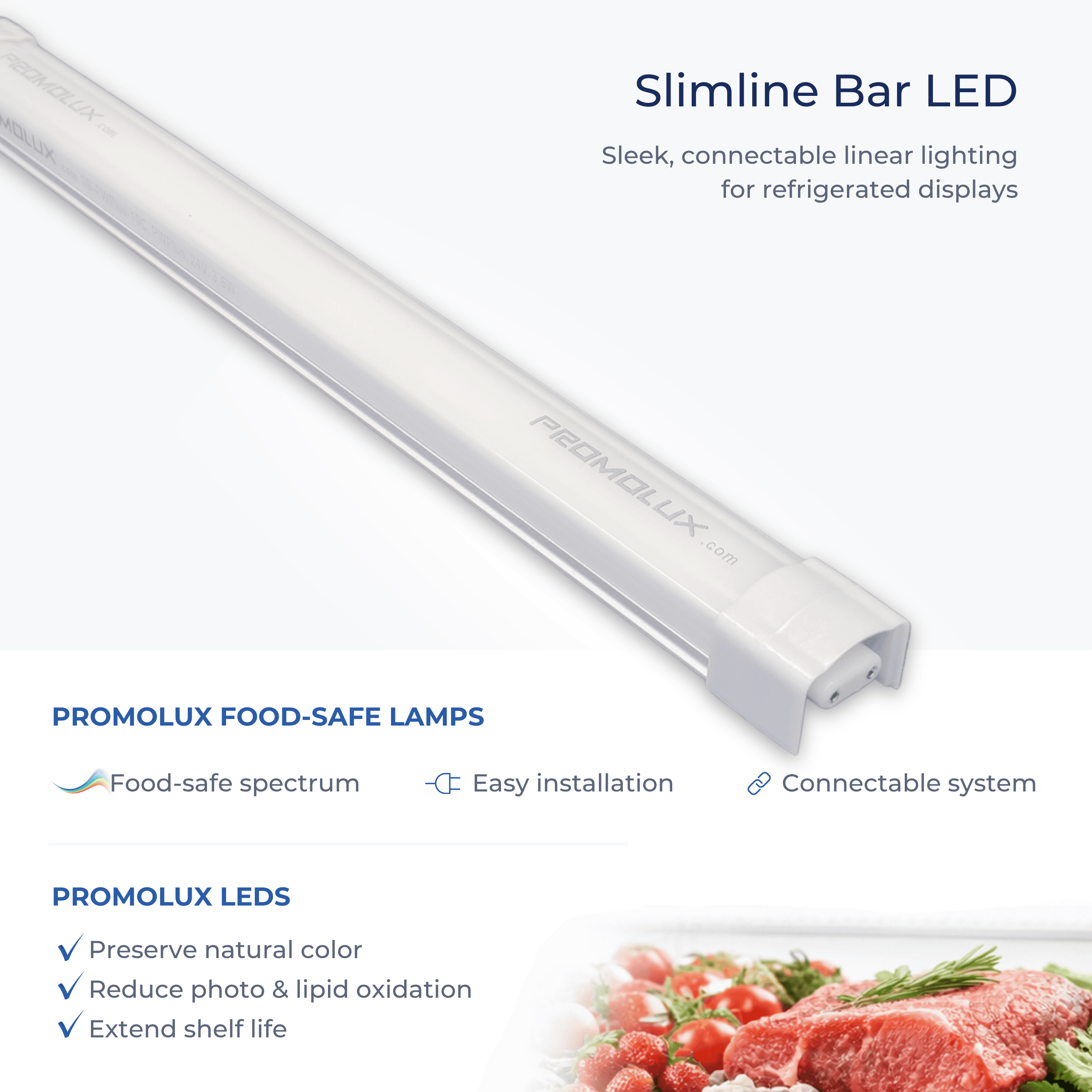

Slimline Bar LED

Works with 24V Constant Voltage LED Driver (sold separately)

Ideal for:
• Service & Multi-Deck
• Meat, Seafood, Dairy, Deli & Prepared Foods, Floral, Produce, Bakery, Salad Bars, Ice Cream/Gelato

Overview

The most universal, high IP, compact, long life and 24V high efficiency LED shelf lighting from Promolux. Using high quality heat sinks for exceptional thermal management, this linear LED bar comes in various lengths and wattages and can be interconnected for up to 150 Watts.

It is easy and fast to install using standard high-powered magnets or angular mounting brackets, allowing each bar to have from 0 to 60 degrees beam angle. Often combined with the Promolux DC Power Tracks, our Slimline LED Bar is ideal for fresh food applications in refrigerated multi deck and service cases.

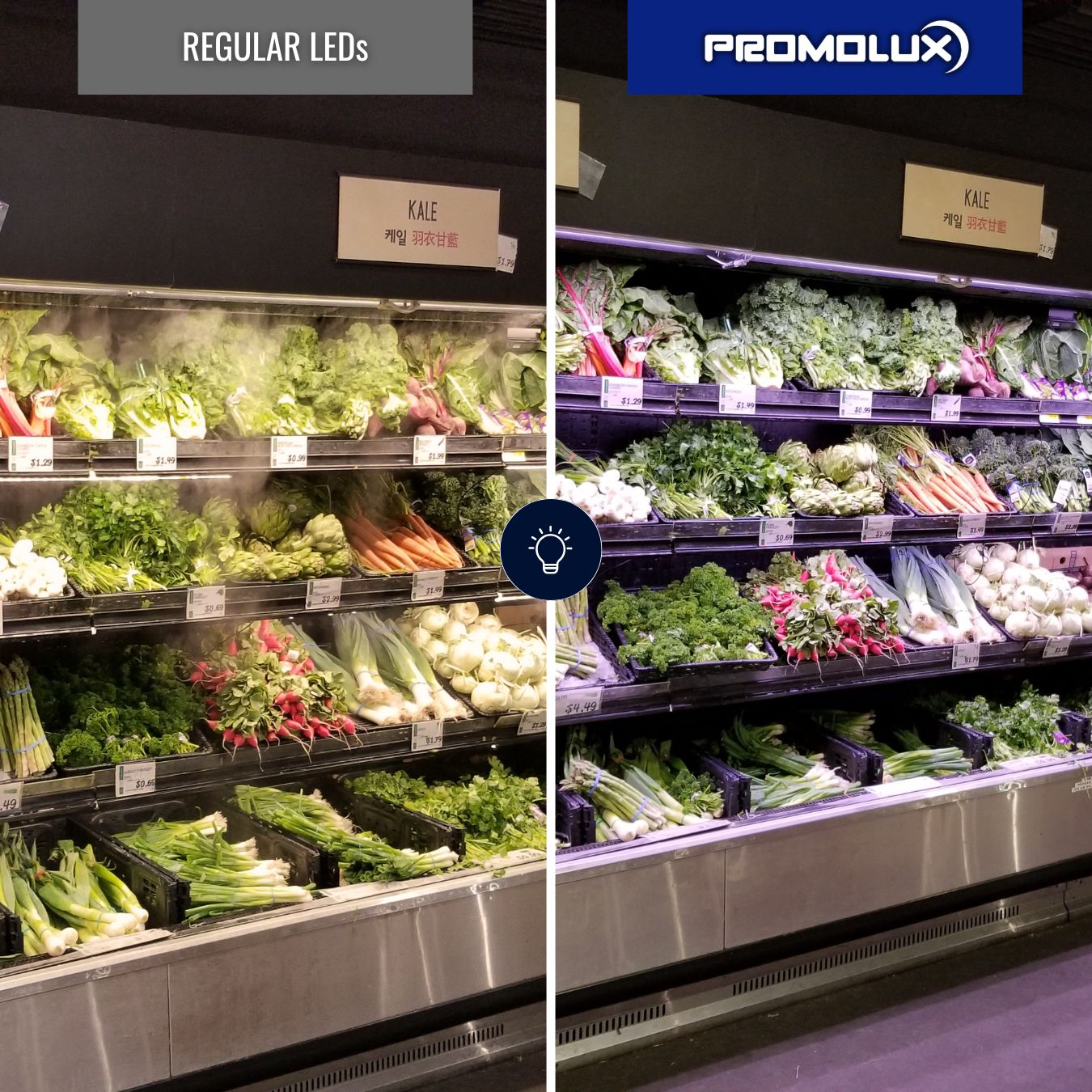

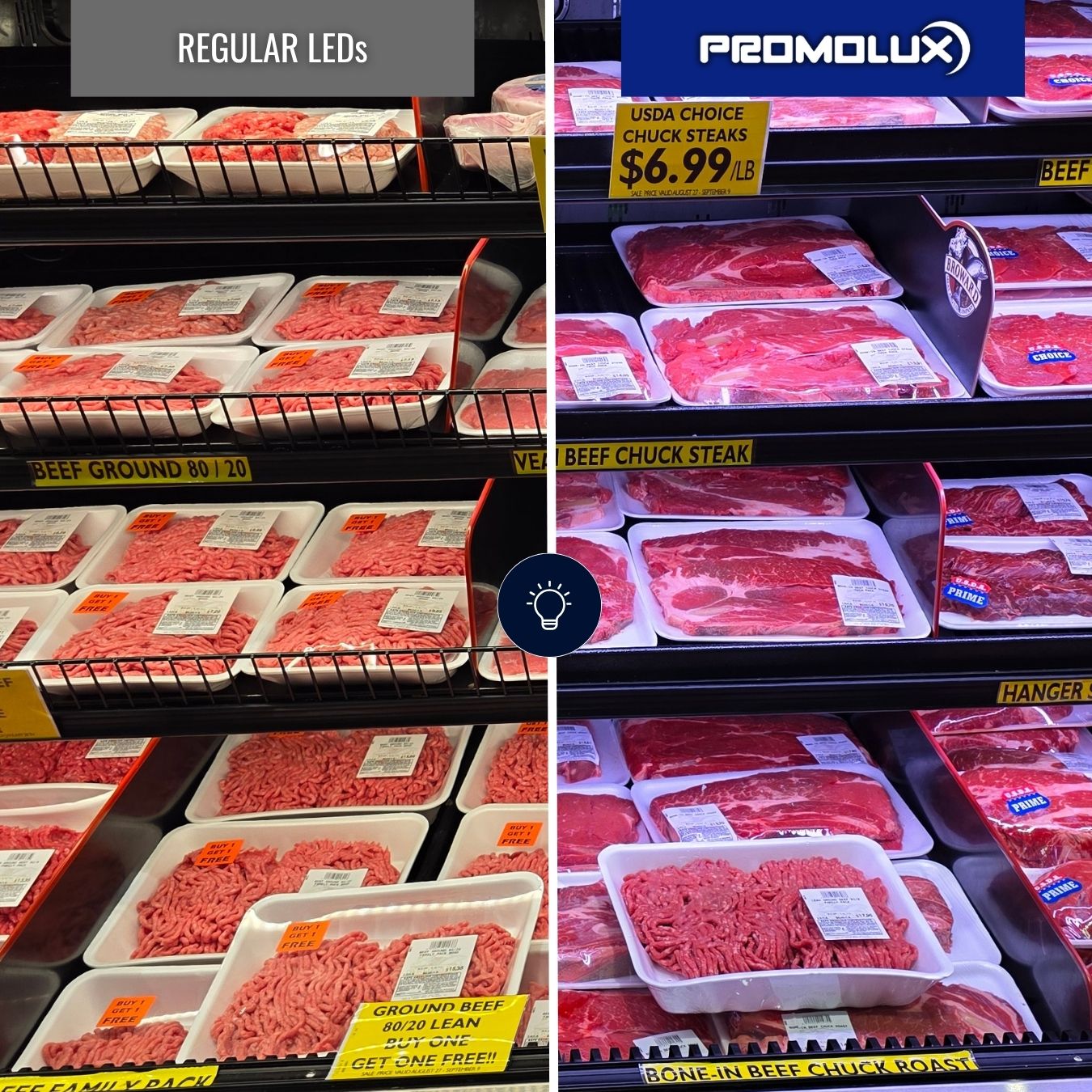

Promolux Safe Spectrum Technology will reduce shelf-life losses and protect perishable products against discolouration and oxidization which can affect taste and nutritional benefits in all food groups. All our Promolux LEDs come in our signature balanced spectrum Platinum color, providing vibrant, natural displays by bringing out the true color of fresh food.


Consult your Promolux supplier on custom solutions for your specific requirements.

Product Data

Connectable in a Series up to 150W

IP65

226° Beam Angle

CRI > 80

High R9 & R12 Values

Power Factor > 0.9

Voltage Input: 24V

Chips: 2835

Color: Platinum

CE logo
RoHS logo

Ordering Guide



Size Model Number Watts Type Length (mm) (Nominal) Length (in) (Nominal) Lumens Lumens per Watt Color
1 ft SB-PL-10C 3.8 Canopy 254 10 320 84 Platinum
2 ft SB-PL-22C 10.6 Canopy 549 22 950 90 Platinum
3 ft SB-PL-34C 12 Canopy 849 34 1050 88 Platinum
4 ft SB-PL-46C 14 Canopy 1149 46 1240 89 Platinum
5 ft SB-PL-58C 22 Canopy 1449 58 1810 82 Platinum

3 ft SB-PL-34S 5.8 Shelf 849 34 530 91 Platinum
4 ft SB-PL-46S 6.8 Shelf 1149 46 660 97 Platinum
5 ft SB-PL-58S 11 Shelf 1449 58 940 85 Platinum



Specifications subject to change without notice. Contact us for more information.
